Kev Txhim Kho Ntawm SMC Da Dej Thiab Chav Dej Phab Ntsa Panels

Tsav los ntawm kev xav tau ntau ntxiv rau cov tsev prefabricated, kev kho vaj tsev qub, tsev so thiab cov vaj tsev nyob tsis muaj nqi, SMC (Sheet Molding Compound)da dej tais thiab chav dej phab ntsa panels, cov khoom tseem ceeb ntawm cov chav dej sib xyaw ua ke, tau pom cov kev lag luam ua tiav thiab tau ua tiav cov txheej txheem thev naus laus zis thoob plaws ntau qhov ntev.



I. Hloov kho cov qauv tsim khoom



Tshiab- tiam tshiab cov tshuab tsim tshwj xeeb tsim rau cov khoom siv huv SMC tau raug kho dua tshiab:

Tsawg-VOC eco- phooj ywg puag resin: Tsawg- tsis muaj zog polyester yog siv los txiav cov ntxhiab tsim thaum lub sij hawm tsim khoom thiab cov khoom tiav, nrog xoom formaldehyde emission. Nws ua tau raws li qhov yuav tsum tau sib tw rau cov khoom siv vaj tsev ntsuab thiab LEED- tau ntawv pov thawj cov haujlwm prefabricated. Qee cov qauv suav nrog bio-raws li resin thiab siv iav fiber ntau, txiav cov khoom lag luam carbon hneev taw ntau dua 30%.



Intrinsic antibacterial modification technology:Inorganic antibacterial agents yog ncaj qha sib xyaw rau hauv SMC daim ntawv substrate, tsis zoo li tom qab - cov tshuaj tsuag txheej. Antibacterial txheej yuav tsis tev tawm vim puas. Nws ua tiav 99% tshuaj tua kab mob tiv thaiv Escherichia coli thiab Staphylococcus aureus, thiab inhibits kev loj hlob ntawm cov pwm hauv chav dej xws li Aspergillus niger. Nws yog qhov zoo tshaj plaws rau qhov siab - thaj chaw ntub dej xws li tsev kho mob, tsev laus thiab tsev so.



Optimized reinforcement system:Txhim kho iav fiber ntau dispersion txheej txheem muab ib tug ruaj khov flexural zog ntawm ntau dua los yog sib npaug rau 80 MPa, txhim khu kev cuam tshuam thiab tawg tsis kam, thiab mus tas li deformation kuj rau cov tais nyob rau hauv ntev - lub sij hawm load. UV tsis kam thiab damp - kub tiv thaiv kev laus kuj tseem hloov kho dua tshiab, txuas ntxiv cov xim tuav lub neej mus rau ntau tshaj 10 xyoo nyob rau sab nraum zoov thiab ntub dej ua haujlwm.



Ntsuas lub teeb yuag tsim nrog lub zog siab:Filler ratios yog optimized thaum tuav lub zog ntawm cov qauv. Cov tais da dej thiab phab ntsa vaj huam sib luag ntawm qhov ntev zoo ib yam yog 15-22% sib dua, txo tus nqi rau kev thauj mus los, hoisting thiab pem teb load-cov kabmob. Kev txhim kho ncaj qha yog ua tau rau kev kho vaj tsev qub yam tsis muaj kev txhim kho hauv pem teb.





II. Kev tsim kho tshiab hauv Compression Moulding thiab Pwm Technology



Pwm thiab compression molding txheej txheem ua haujlwm ua cov khoom siv tseem ceeb txhawb kev txhim kho ntawm SMC da dej tais thiab phab ntsa panels:



Nano- daim iav polished pwm

Lawv xa Class A du nto rau cov khoom siv tu cev, ncaj qha luam ntawv textures xws li imitation marble, terrazzo, sandstone thiab ntoo grain. Tsis muaj kev tshaj tawm - yuav tsum tau pleev xim pleev xim, tshem tawm cov xim pleev xim. Phab ntsa vaj huam sib luag thiab cov tais tuaj yeem sib xyaw ua ke hauv cov xim sib xws thiab kev ntxhib los mos los tsim kom pom qhov chaw zoo sib xws hauv chav dej.



Kev sib xyaw ua ke ib - kauj ruam compression molding

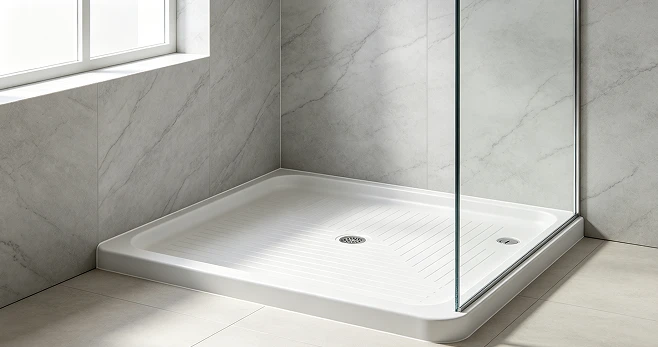

SMC cov tais da dej: Flanged dej tuav cov npoo, cov kab dej ntws thiab ua -hauv kev tiv thaiv- plam micro- cov ntaub ntawv yog cov pwm sib xyaw ua ke, tshem tawm cov kev sib txuas sib txuas. Lub tais- zoo li lub tais sib xyaw ua kom tshem tawm cov dej ntws ntawm cov pob qij txha. Nws cov dej ntub dej zoo li qub coefficient nce siab dua lossis sib npaug li 0.7, ua raws li cov qauv tiv thaiv- plam rau cov neeg laus- cov chaw zoo.

SMC chav dej phab ntsa panels: Loj -format tag nrho panels yog molded nrog pre-embedded hardware bases, cable troughs, access panels thiab cia recesses nyob rau hauv ib daim. Phab ntsa vaj huam sib luag tau hloov zuj zus los ntawm cov vaj huam sib luag tiaj tiaj zoo nkauj rau cov vaj huam sib luag ua ke.



III. Innovative Waterproof Assembly Structures



Embedded flanged tais qauv SMC: SMC cov tais yog tsim los nrog tsa cov flanges, uas nyob rau hauv qab kawg ntawm SMC phab ntsa panels yog ncaj qha tso thiab xauv, sib phim nrog tshwj xeeb sealing strips. Qhov no tso tseg cov kua nplaum yooj yim-tsuas yog sealing thiab txo qhov kev pheej hmoo ntawm kev tawg los ntawm cov nplaum nplaum. Lub flange qhov siab yog siab dua los yog sib npaug li 36 hli los tsim ib lub cev dej tuav thaiv.



Standardized modular ceev- sib dhos pob qij txha:Txiv neej-poj niam snap- nyob rau hauv kev sib txuas yog siv ntawm phab ntsa panels los txiav cov kua nplaum. Ua kom tiav cov tais thiab phab ntsa panels yog prefabricated nyob rau hauv factories thiab ntsia ntawm qhuav siv rau ntawm qhov chaw. Ib chav dej ib leeg tsuas yog siv sijhawm 4-6 teev los txhim kho, ua kom lub sijhawm siv sijhawm luv luv los ntawm 70% piv nrog cov pobzeb tsoos. Tsis muaj cov cement mortar ua haujlwm, thiab chav dej tuaj yeem muab tso rau hauv kev siv tam sim tom qab kev teeb tsa, ua rau nws tsim nyog rau nruj- cov haujlwm teem caij xws li kev kho tsev so, vaj tse indemnificatory thiab chaw kho mob ua haujlwm.



Txhawb customization nyob rau hauv ntau qhov ntau thiab tsawg:Compatibility nrog customized ntau- cov khoom loj

Txheem pwm puag ua ke nrog kev hloov pauv pwm ib nrab txhawb nqa ob qho tib si engineering xaj thiab tsis yog - qhov loj me hauv tsev. Cov tais tsis xwm yeem thiab nkhaus kaum phab ntsa vaj huam sib luag tuaj yeem ua txhua yam sib xyaw ua ke - molded los ntawm SMC.





IV. Txhim kho Surface Functional Performance



On top of the dense, non-absorbent base material, new-generation SMC trays and wall panels feature functional surface treatments:

Lotus- cuam tshuam superhydrophobic nto:A micro-nano composite microstructure ua rau nws tus kheej- ntxuav raws li cov tee dej dov tawm thiab ntxuav cov xab npum thiab stains. Cov seem ntawm soy sauce thiab lub cev ntxuav lub cev tuaj yeem tshem tawm kom tsis muaj zog kom txo qis kev ua haujlwm hauv chav dej. Cov khoom siv hauv paus nws tus kheej tsis nqus dej, inhibiting xab npum scum adhesion los ntawm qhov chaw.

High hnav thiab tshuaj tiv thaiv: Martindale abrasion kuj ncav cuag ntau dua lossis sib npaug rau 50,000 cycles. Rov ua dua nrog cov ntxhua khaub ncaws hauv chav dej txhua hnub yuav tsis ua rau lub ntsej muag, uas tiv thaiv dulling tom qab siv sijhawm ntev -. Nws tiv taus acidic thiab alkaline da dej tshuaj, haum siab -frequency coj mus muag siv scenarios.



V. Technological Innovations thiab Cov Khoom Txhim Kho

Cov neeg tsim khoom tau txhim kho qhov kev ua tau zoo thiab cov tsos ntawm SMC cov khoom los ntawm kev tsim kho thev naus laus zis los kov yeej cov teeb meem ib txwm muaj:



• Visual upgrade rau phab ntsa panels: Txhawm rau tshem tawm cov yas pheej yig thiab hollow qhov muag pom tau zoo rau cov khoom siv SMC,ib tug thib tsib - tiam phab ntsa vaj huam sib luag hu ua "Bosheng Ke-Gong Board"tau tso tawm. Nws txais yuav imitation pob zeb slab tsim nrog marble kev ntxhib los mos thiab txhawb tus kheej xim customization.
• Patented los tiv thaiv-pwm technology:Targeting pwm kev loj hlob ntawm cov ntaub ntawv zoo nkauj ntawm cov tsoos SMC phab ntsa panels, ib lub tuam txhab luam tawm ib tug tshiab patent nyob rau hauv Lub ob hlis ntuj 2026. Cov txheej txheem sib xyaw ua ke nrog nano- txheej, hloov luam ntawv txheej thiab thermal rwb thaiv tsev filling txheej tiv thaiv pwm kev loj hlob.



VI. Kev ua lag luam thiab kev lag luam Trends



Nthuav daim ntawv thov scenarios:Ua kom tiav ntawm SMC tais thiab phab ntsa panels yog dav siv nyob rau hauv refined vaj tsev nyob, indemnificatory vaj tse, tsev so renovation, kho mob thiab cov neeg laus cov tsev kho mob, nrog rau cov chav dej modules rau ships thiab RVs. Kev kho vaj tsev qub kev lag luam pom kev loj hlob zoo heev: cov chav da dej qub tuaj yeem kho ncaj qha los ntawm kev hloov cov vuas yam tsis muaj phab ntsa rhuav tshem, tsim cov khoom siv pov tseg tsawg dua thiab siv sijhawm luv luv.



Ob txoj kev txhim kho loj rau kev lag luam

Engineering sector: Standardization, txo nqi thiab txhim kho efficiency.Standardized pwm thiab ntau lawm ntawm SMC nplooj ntawv tsis tu ncua txo tus nqi ntawm cov chav dej sib xyaw ua ke, maj mam hloov cov pobzeb ntub dej. Green tsev cov ntaub ntawv pov thawj dhau los ua qhov tseem ceeb ntxiv rau qhov kev sib tw.

Tsev neeg sector: Cov tsos zoo nkauj ntxiv rau kev ua haujlwm.Kev thov rau pob zeb-qhia, matte thiab khoom- xim tiav, tiv thaiv- cov tais hauv qab rau cov neeg laus thiab cov phab ntsa tiv thaiv kab mob nce nrawm.



Cov teeb meem kev lag luam uas twb muaj lawm:Tsawg-SMC cov khoom lag luam qis dua dej nyab lub lag luam, muaj cov iav fiber ntau tsis txaus hauv cov nplooj ntawv thiab siv cov khoom siv rov ua dua, uas ua rau yellowing, tawg thiab ua tsis tau zoo los tiv thaiv- plam kev ua haujlwm. Kev lag luam yog txhawb nqa cov khoom siv raw khoom, kev ntsuas kev ua tau zoo thiab kev siv tus qauv los tsav kev txhim kho kev lag luam.
