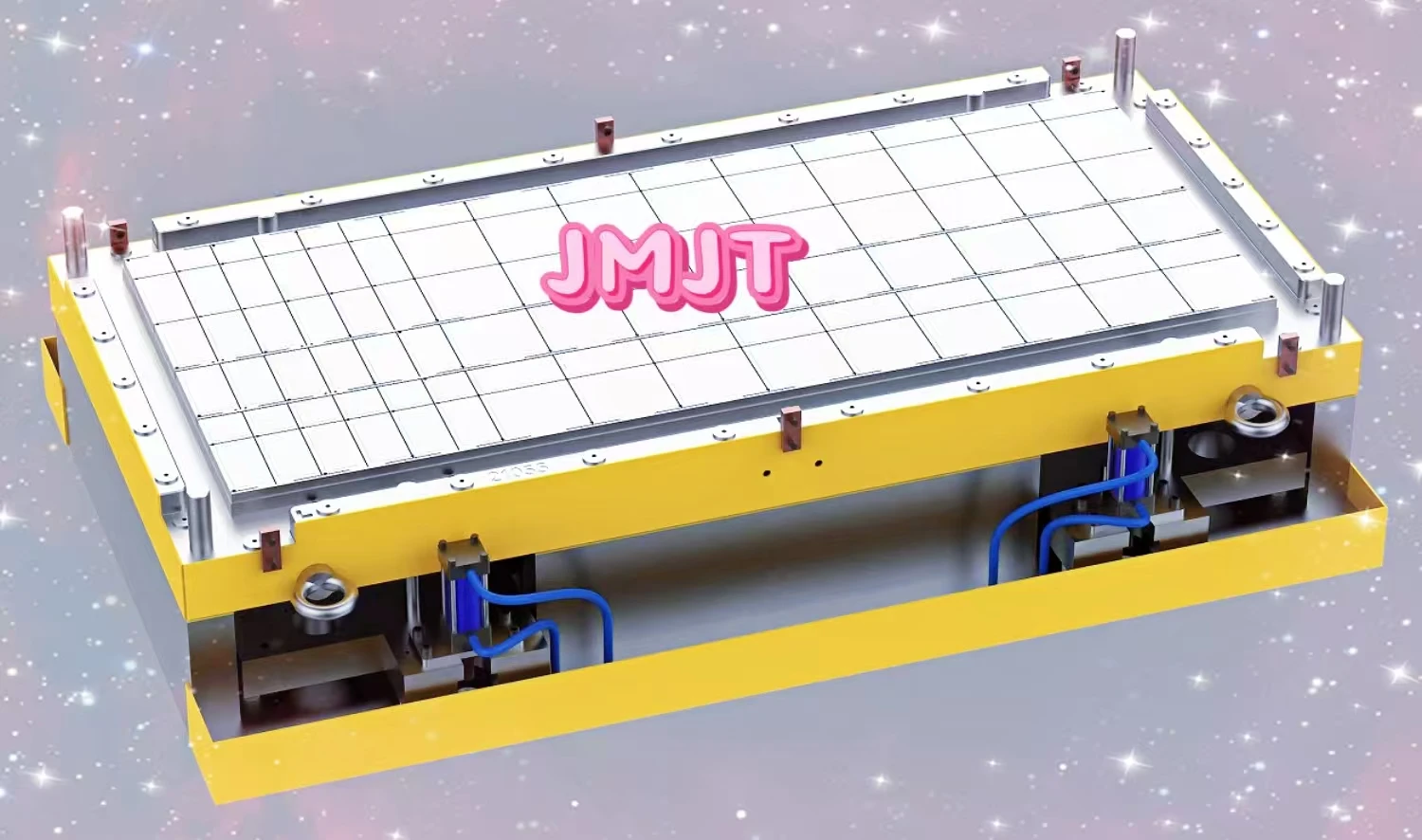

SMC Phab Ntsa Vaj Huam Sib Luag Pwm

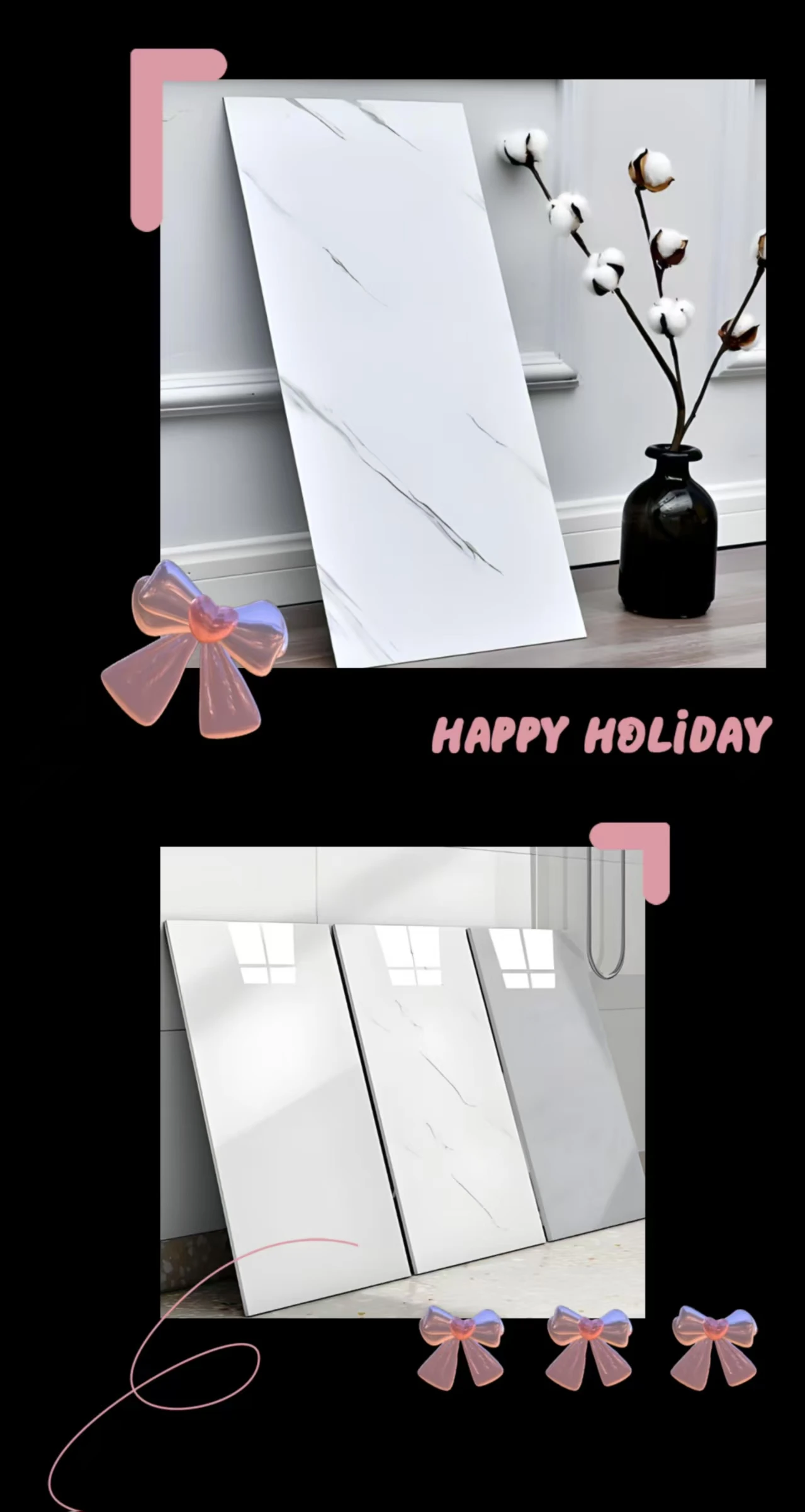

SMC phab ntsa vaj huam sib luag pwm yog thermosetting composite compression pwm siv los nias SMC daim ntawv molding compound nyob rau hauv kub thiab siab mus rau waterproof phab ntsa panels rau chav dej, thawv cabins, tsev so integrated chav dej systems, thiab sab nrauv phab ntsa zoo nkauj. Cov vaj huam sib luag no muaj cov chav kawm A du nto tiav, cov hlua txuas ntxiv rau sab nraub qaum, tsis muaj dej tsis zoo thiab nplaim taws- cov khoom tsis zoo, thiab kev ruaj ntseg zoo heev.

I. Zuag qhia tag nrho cov qauv ntawm Pwm

1. Sab saum toj thiab sab pwm kab noj hniav (core tsim cov khoom)

· patrix:

Nyob rau sab pem hauv ntej ntawm lub phab ntsa tsim, nws yog kho nrog daim iav polishing thiab chrome plating. Qhov no ua rau daim ntawv thov ntawm zaj duab xis hloov cov ntaub ntawv thiab cov xim ntshiab siab -gloss nto. Qhov saum npoo roughness yog Ra tsawg dua lossis sib npaug ntawm 0.4 μm, muab cov khoom tiv thaiv - nplaum thiab yooj yim demolding zog.

· counterdie:

Nyob rau sab nraum qab ntawm phab ntsa vaj huam sib luag, muaj cov tsim longitudinal thiab transverse reinforcing rib grooves, uas tsim ib tug integrated reinforcing rib, txhim kho qhov khoov tsis kam ntawm phab ntsa vaj huam sib luag. Kev teeb tsa pins thiab qhov txuas txuas tuaj yeem khaws cia rau kev teeb tsa thiab kev sib txuas lub hom phiaj.

2.kub tswj qhov system

· Ob txoj kev cua kub tseem ceeb:

· Roj ncig cua sov: Kev tswj qhov kub thiab txias tsis sib xws nrog qhov tseeb ntawm ± 3 txog 5 degree. Nws yog qhov tsim nyog rau kev tsim khoom loj ntawm - loj phab ntsa panels (1200 × 2400mm, 1500 × 3000mm).

Hluav taws xob cua sov pas nrig cua sov: Tsawg peev nqi, haum rau me me thiab nruab nrab batch, thiab me me thiab nruab nrab - qhov loj specification pwm. Txheem molding kub: 140 ~ 160 degree.

3. Kev taw qhia qhov chaw + Cov pa hluav taws xob

Plaub pawg ntawm cov kab lus qhia meej thiab lub tes tsho qhia kom paub tseeb tias lub phaj loj loj tsis sib txawv thaum lub sijhawm kaw, thiab cov npoo ya tau tswj kom tsawg dua lossis sib npaug li 0.1 hli;

Micro-cov pa tawm grooves yog teem nyob ib ncig ntawm cov kab noj hniav + xaiv lub tshuab nqus tsev vacuum, uas yuav pab kom tsis txhob muaj cua npuas, cov khoom tsis txaus, thiab qhov chaw pinhole tsis xws luag hauv cov ntaub ntawv.

4. pwm emptier

Siv pneumatic ejection thiab ib tug multi-point pin layout, loj- phab ntsa panels yog tiv thaiv los ntawm warping thiab deformation, xyuas kom meej lub flatness ntawm panels thaum demolding.

II. Kev xaiv cov khoom siv pwm (raws li kev tsim khoom Lifespan)

kho saum npoo:

Cavity daim iav nto polishing + nyuaj chromium electroplating 5-10 μm. Nws yog hnav-resistant, corrosion-resistant, thiab tuaj yeem rov demolded yam tsis muaj khawb cov xim pleev xim.

III. Cov txheej txheem tsis tu ncua thiab kev tsim khoom ntws

1.Core parameters rau shaping

Pwm tsim siab: 800 - 2000T hydraulic compression xovxwm

· Pwm kub: 145 - 155 degree

· Tuav thiab kho lub sij hawm: 120 - 200 vib nas this

· SMC khoom noj: txiav, hnyav, thiab nteg cov ntaub ntawv, thiab nws muaj peev xwm ib txhij tso tshav kub hloov cov yeeb yaj duab zoo nkauj. Cov hniav zoo nkauj tsis tau tev tawm thaum ib zaug - sij hawm molding.

2. Ua tiav cov txheej txheem tsim khoom

1. Preheat cov pwm thiab siv cov khoom siv sab hauv / sab nraud rau hauv kab noj hniav.

2. Txiav daim SMC daim ntawv, qhov hnyav thiab muab tso rau hauv pwm, tom qab ntawd muab cov yeeb yaj kiab zoo nkauj.

3. Kaw cov pwm → Xauv cov pwm nyob rau hauv siab → Khaws qhov kub thiab txias thiab siv lub siab rau kev kho.

4. Qhib cov pwm thiab siv pneumatic actuators thawb tawm ntawm qhov chaw ntawm ntau lub ntsiab lus rau demolding.

5. Txiav cov phab ntsa vaj huam sib luag, tshem tawm burrs, tshuaj xyuas thiab khaws cia.SMC模压成型原理

IV. Cov ntsiab lus tseem ceeb ntawm SMC Phab Ntsa Vaj Huam Sib Luag Pwm

1. Daim ntawv:

Lub inclination ntawm lub phaj yog ntau dua 1 degree, thiab txoj hauj lwm ntawm lub zog tuav yog ntau dua 1.5 degree. Qhov no yog txhawm rau tiv thaiv lub phaj saum npoo los ntawm kev rub tawm thiab kom tsis txhob muaj cov hlua txuas ntxiv los ntawm kev tawg.

2. Strengthening rib layout:

Interwoven grid reinforcement bars, nrog lub thickness bar feem ntau yog 0.8 npaug ntawm lub thickness ntawm phab ntsa vaj huam sib luag, tsis tsuas yog txo qhov hnyav tab sis kuj tiv thaiv deformation. Tom qab txiav, lub installation txoj hauj lwm ntawm lub reinforcement tuav tseem khaws cia.

3. Uniformity ntawm phab ntsa thickness:

Cov pa thickness ntawm phab ntsa panels yog 3 mus rau 5 mm. Lub thickness sib txawv yuav tsum tau tswj tsis pub dhau 0.5 hli kom tsis txhob muaj qhov sib npaug ntawm qhov curing thiab warping hauv qee qhov chaw.

4. Hom nto tsim:

Txais yuav ib txoj kev sib koom ua ke, sib txuas plaub- sab dhau txoj kab thiab cov pa tawm los tswj cov burrs thiab txo cov kev ua haujlwm ntawm kev ua haujlwm trimming tom ntej.

5. Integrated ua ntej -ntsuas ntsia hlau inserts muaj. Thaum lub sij hawm nias cov txheej txheem, threaded qhov yog ncaj qha tsim rau yooj yim installation yam tsis tas yuav tsum tau rau tom ntej drilling.

V. Main Application Scenarios

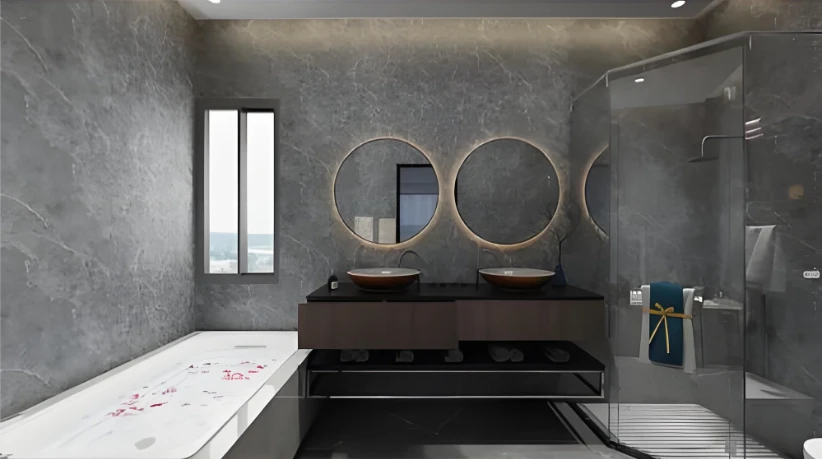

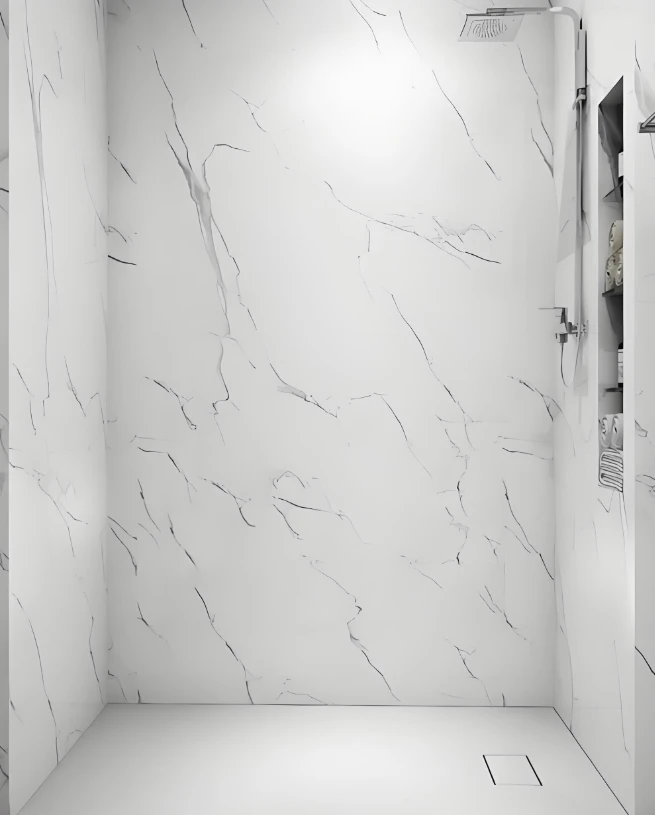

1. Ua kom tiav chav dej SMC waterproof phab ntsa panels, chav da dej phab ntsa panels, chav dej qab nthab;

2. Portable tsev kho mob, thawv dormitories, ib ntus resettlement tsev nyob prefabricated sab hauv phab ntsa panels;

3. Cov chav tsev so, homestay integrated chav dej phab ntsa panels;

4. Rail Transit, nkoj sab hauv los tiv thaiv-corrosion phab ntsa panels, muaj los tiv thaiv-corrosion sab nrauv phab ntsa panels.
